POC-351VTC系列: 紧凑型 B key Supported 802.3at Supported mSATA Standalone 无风扇设计 USB 3.2 Gen1 -25°C to 70°C Intel Atom 8GB
Specifications
|
|
| Intel英特尔® Apollo Lake Atom凌动™ E3950超紧凑型车载工控机,采用GbE,PoE+和隔离式CAN收发器 | |
| 是 | |
|
153 mm (W) x 108 mm (D) x 56 mm (H) (POC-351VTC) 153 mm (W) x 108 mm (D) x 68 mm (H) (POC-351VTC-70) |
|
|
1.0 kg (POC-351VTC) 1.1 kg (POC-351VTC-70) |
|
| Aluminum alloy with heavy duty metal | |
| Intel® Atom™ E3950 1.6/2.0 GHz quad-core processor | |
| - | |
| Integrated Intel® HD Graphics 505 | |
| Up to 8GB DDR3L-1866 (single SO-DIMM slot) | |
| IEEE 802.3at PoE+ on port #2 and #3 | |
| 3x Gigabit Ethernet ports by Intel® I210 GbE controller | |
| VGA and DVI dual display outputs via DVI-I connector | |
|

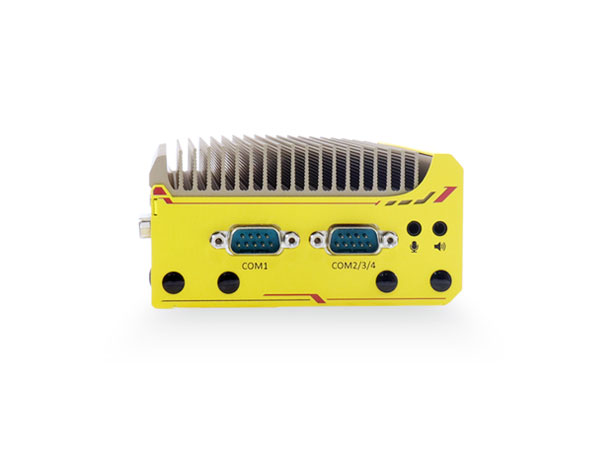

1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/COM3/COM4) or 1x RS-422/485 port (COM2) |
|
| 1x Mic-in and 1x speaker-out | |
| - | |
| - | |
|
1x half-size mSATA port 1x full-size mSATA port |
|
| - | |
| - | |
| 3x full-size mini PCI Express sockets with USIM support | |
| - | |
| - | |

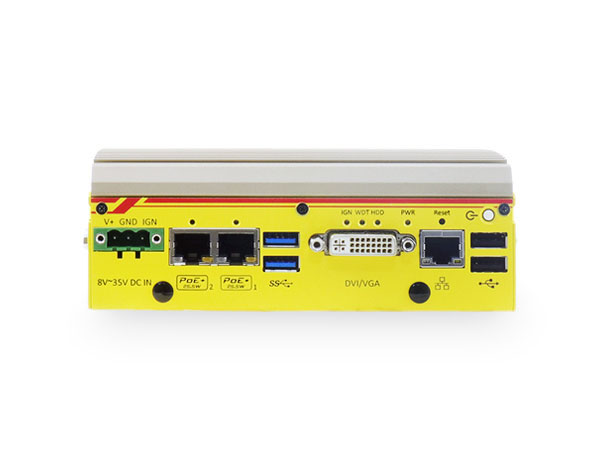

| 用于 8V 至 35V 直流输入，内置点火电源控制（IGN / GND / V +）的3针可插拔端子块 | |
| - | |
| - | |
|
-25°C ~ 70°C -40°C ~ 70°C (optional) |
|
|
E-Mark for in-vehicle applications EN 50155/ EN 50121-3-2 CE/FCC Class A, according to EN 55032 & EN 55024 |
|
| 2个USB 3.0端口，2个USB 2.0端口 | |
| 支持 | |
| 3个全长mini PCI Express 插槽，提供USIM 支持 |
